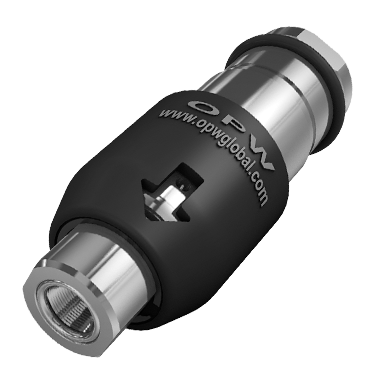

FLB-1000 Fill Line Breakaway – CNG Fueling Safety Disconnect

Name: FLB-1000 Fill Line Breakaway – CNG Fueling Safety Disconnect
Brand: OPW CleanEnergy
Availability: InStock

The FLB-1000 CNG hose breakaway is a safety device designed to protect compressed natural gas (CNG) fueling stations from damage caused by accidental drive-away incidents.

Installed in the main pressure line between the dispenser hose and the fueling nozzle, the breakaway coupling automatically separates when excessive tension is applied to the hose. This prevents damage to the dispenser, hose and fueling nozzle while helping minimize gas release.

The FLB-1000 is engineered for demanding refueling environments where reliable performance and safety are critical. Its durable construction and compact design allow for easy installation while maintaining high flow capacity for modern CNG fueling systems.

Breakaway couplings like the FLB-1000 are widely used in CNG and biomethane fueling infrastructure to improve safety, protect equipment and reduce downtime following accidental drive-away events.

Technical Specifications

Key Features and Benefits

Protects fueling stations from drive-away incidents
Automatic separation under excessive tension
Designed for high-pressure CNG fueling systems
Durable construction for demanding environments
Easy inline installation
Helps minimize equipment damage and downtime

Flow Rate & Nominal Pressure

Designed for high-flow CNG fueling systems used in public and private fueling stations.

Nominal pressure class:
Up to 250 bar (3600 psi)

Max. Allowable Operating Pressure

312.5 bar (4532 psi)

Weight

Approx. 1.0 kg

Gas Type

Compressed Natural Gas (CNG)
Compressed Biomethane (CBG)

Connection Types / Interface

SAE threaded connections
Inline installation in the main CNG fill line
Installed between dispenser hose and fueling nozzle
Specific connections available upon request.

Standards & Compliance

Designed for high-pressure CNG fueling systems
Leak-tested during manufacturing

Compatibility & Alternatives

Compatible with NGV1 fueling nozzles including CT1000 series and pistol grip nozzles.

Alternative hose breakaway:
BRW.08 breakaway coupling.

Service & Customers

Lifecycle & Service Concept

The FLB-1000 breakaway coupling is designed for long service life in high-cycle fueling environments. After activation, the breakaway can typically be inspected and replaced to restore normal operation while minimizing downtime for station operators.

Typical Customers

CNG fueling station operators
Biomethane fueling station operators
Natural gas utilities
Fleet fueling infrastructure providers
Service companies maintaining NGV fueling equipment
