Products for industrial CO2 handling
CO2 Transfer CCS/CCU covers products for safe and efficient handling of CO2 in industrial facilities.
SHERHOSE-CO2 is a transfer system with dry-break couplings from ARTA and stainless steel hose systems, configured to requirements for length, connection and flange specification. Pressure rating PN40.
SHERPARK-CO2 is a solution for safe parking of dry-break couplings, with emergency stop, visual red/green indicator and the option to fasten CO2 hoses.
Dry-break couplings make it possible to connect and disconnect under pressure. This provides a more efficient and safer process, makes loading and unloading faster, and minimises CO2 emissions.
SHERHOSE-CO2
SHERHOSE-CO2 is a transfer system with dry-break couplings from ARTA and stainless steel hose systems, configured to requirements for length, connection and flange specification. Pressure rating PN40.
The solution can also include a breakaway safety coupling and protection against bending and pull. This strengthens safety and contributes to stable operation under demanding conditions.
The solution is also well suited for integration into existing fleets.

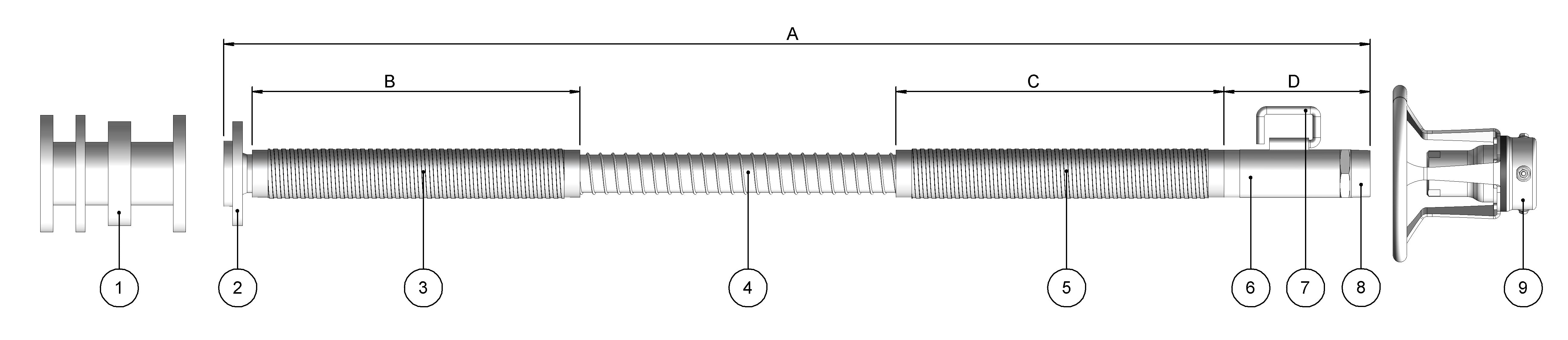

SHERHOSE-CO2 components
| # | Component |
|---|---|
| 1 | ARTA Breakaway coupling. Hose- or wirepull. |
| 2 | Flange. DIN or ANSI |
| 3 | Kink protection stainless steel |
| 4 | Hose PN25 or PN40, Stainless steel with wire braiding for protection |
| 5 | Kink protection stainless steel |
| 6 | Fixed pipe with lifting handle, stainless steel. |
| 7 | Lifting handle and safetywire hookup, Stainless steel. |
| 8 | Threaded connection |
| 9 | ARTA Drybreak coupling |

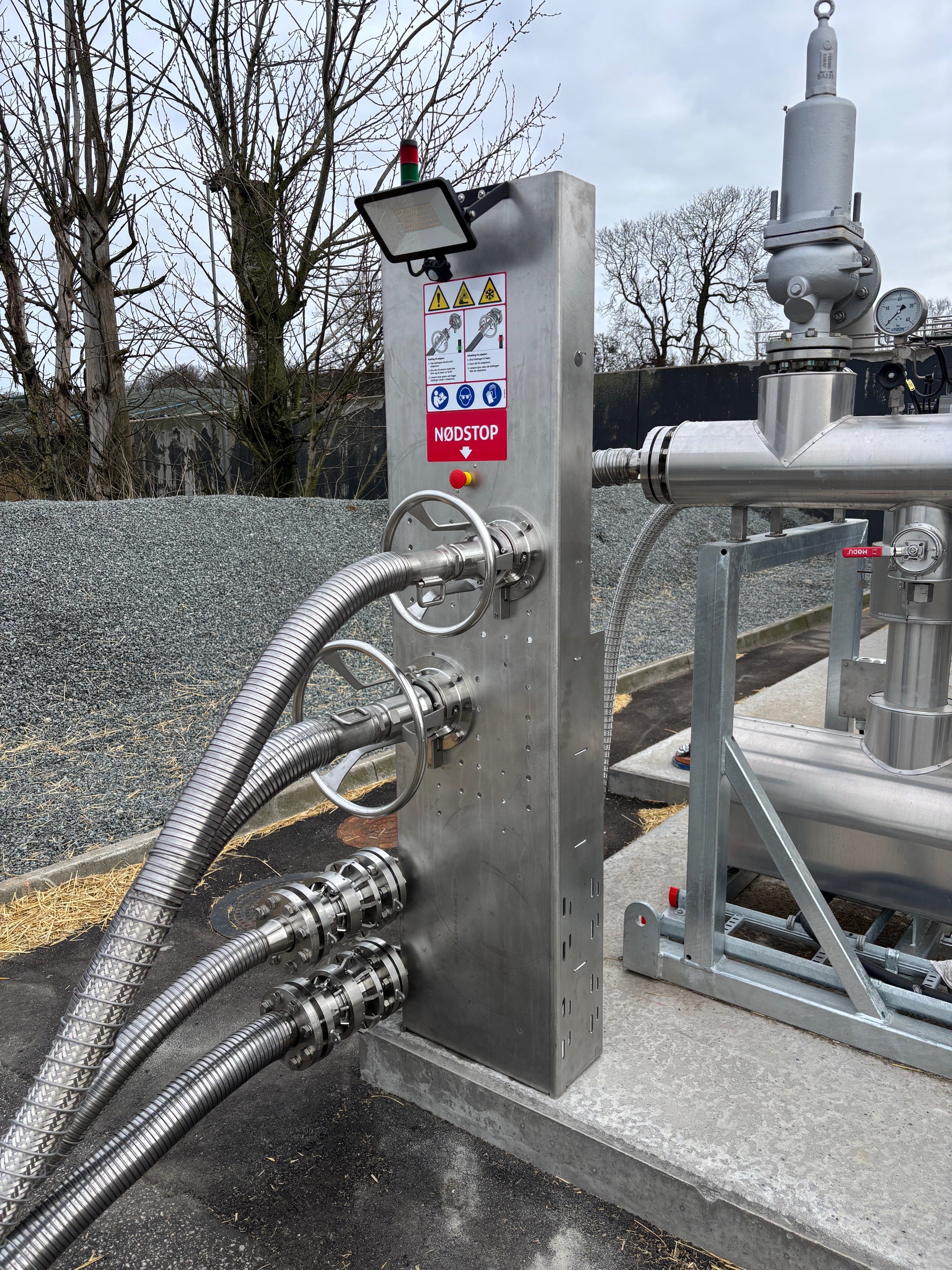

SHERPARK-CO2
SHERPARK-CO2 is a solution for safe parking of dry-break couplings, with emergency stop, visual red/green indicator and the option to fasten CO2 hoses.

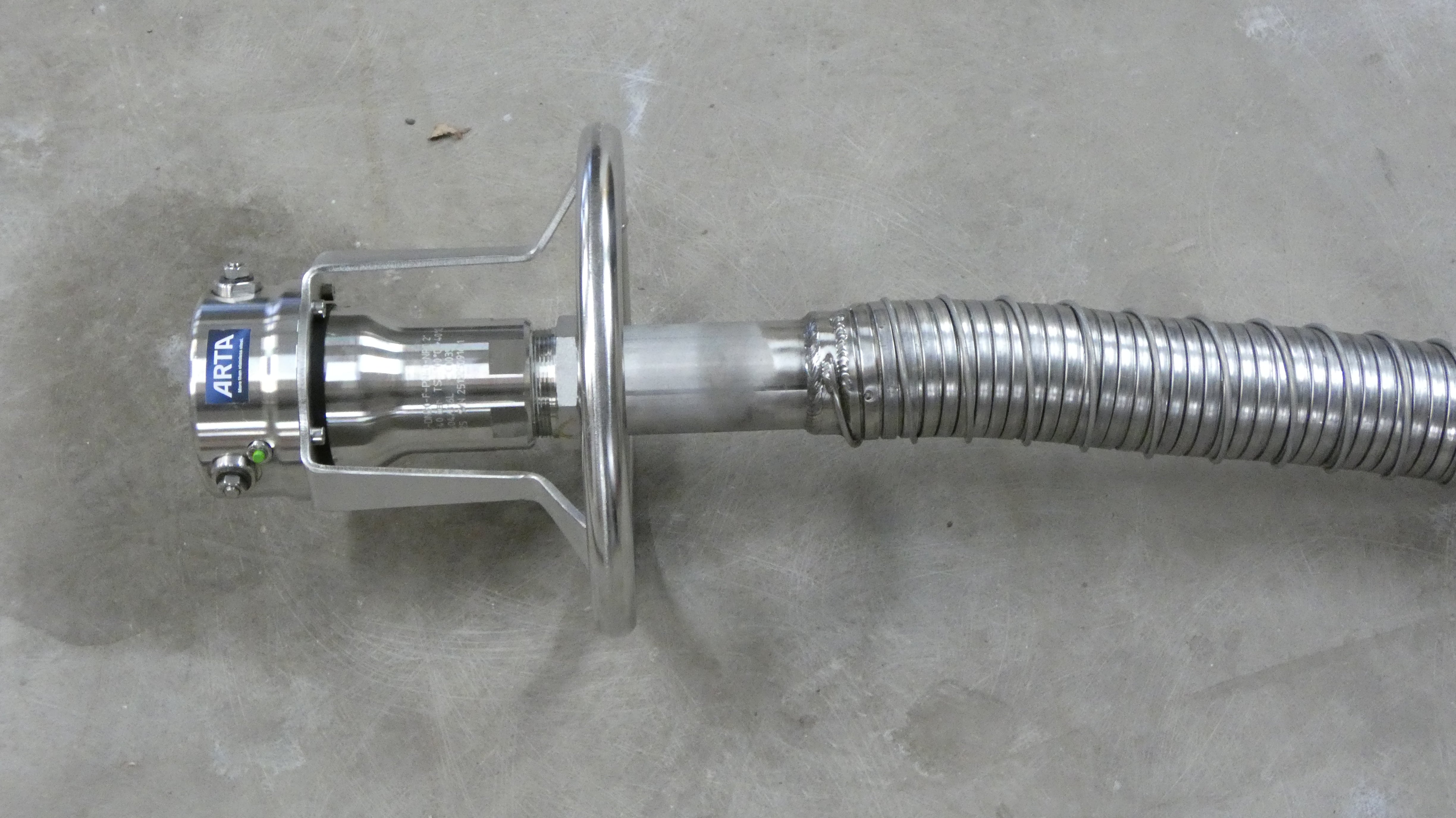

Dry-break couplings
Dry-break couplings make it possible to connect and disconnect under pressure. This provides a more efficient and safer process, makes loading and unloading faster, and minimises CO2 emissions to the atmosphere.
Both male and female couplings are delivered, which makes the solutions relevant for facility owners, truck owners and tanker manufacturers alike.
As a certified ARTA service centre for Scandinavia, there is also access to service, testing and maintenance of the coupling solutions.
