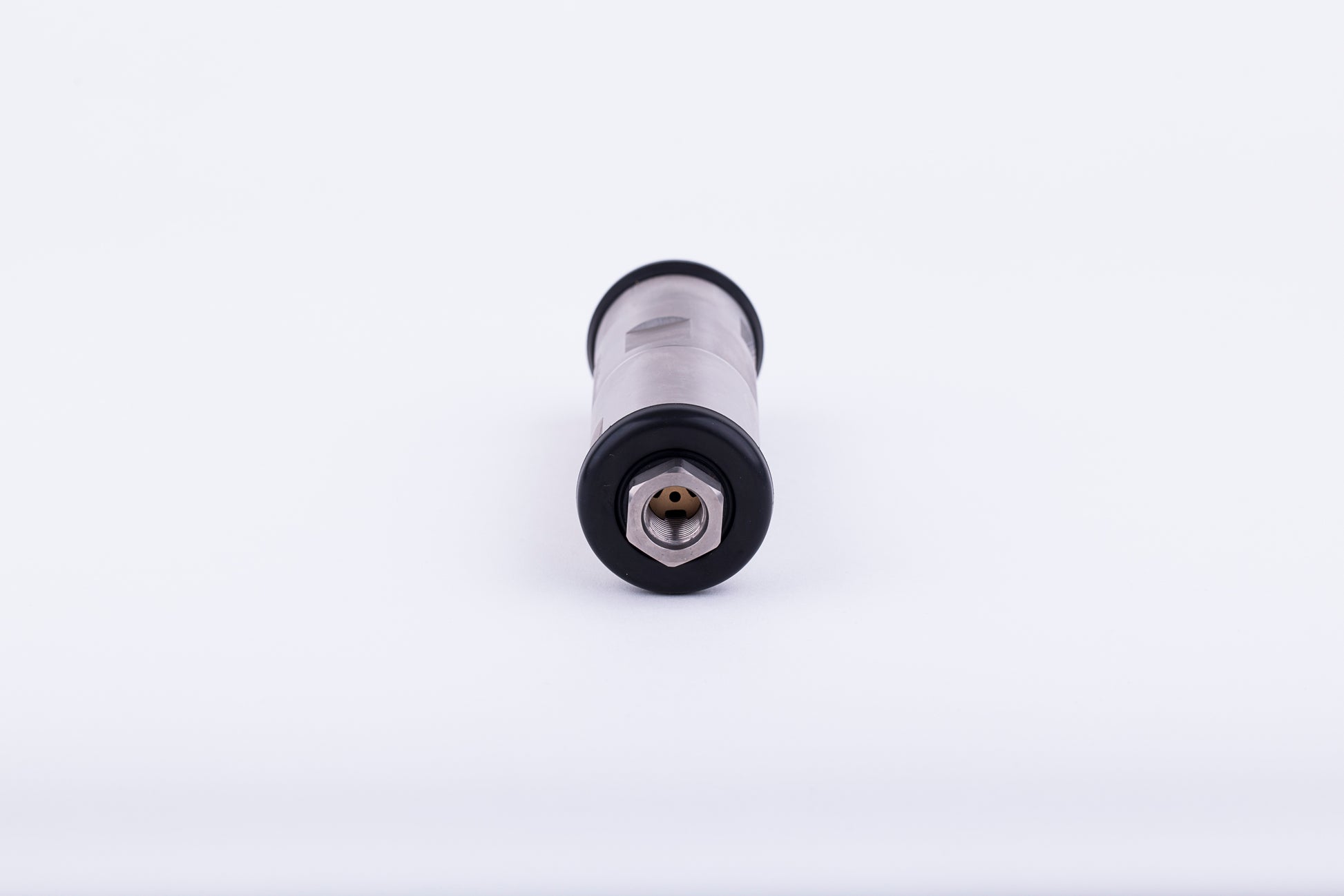

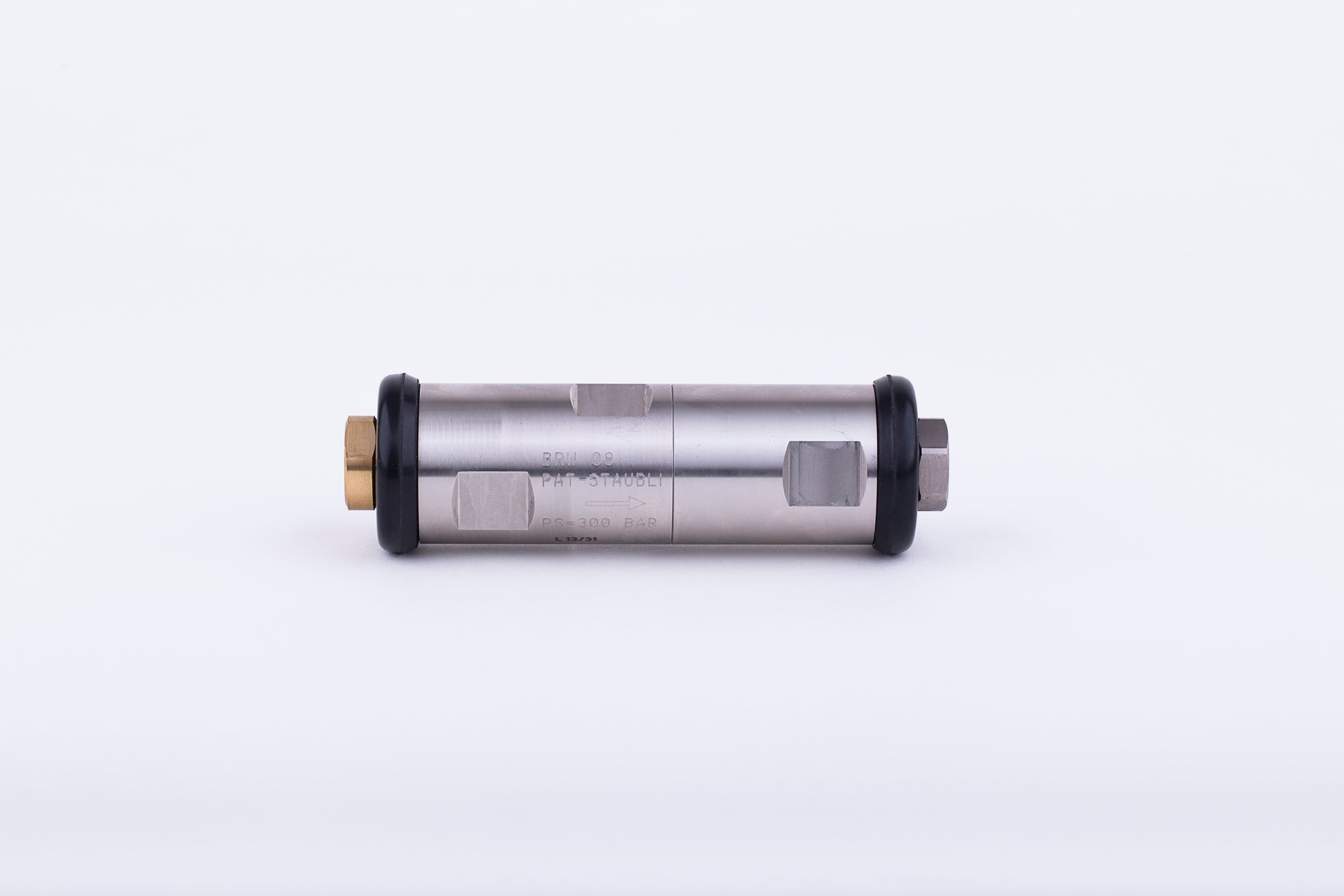

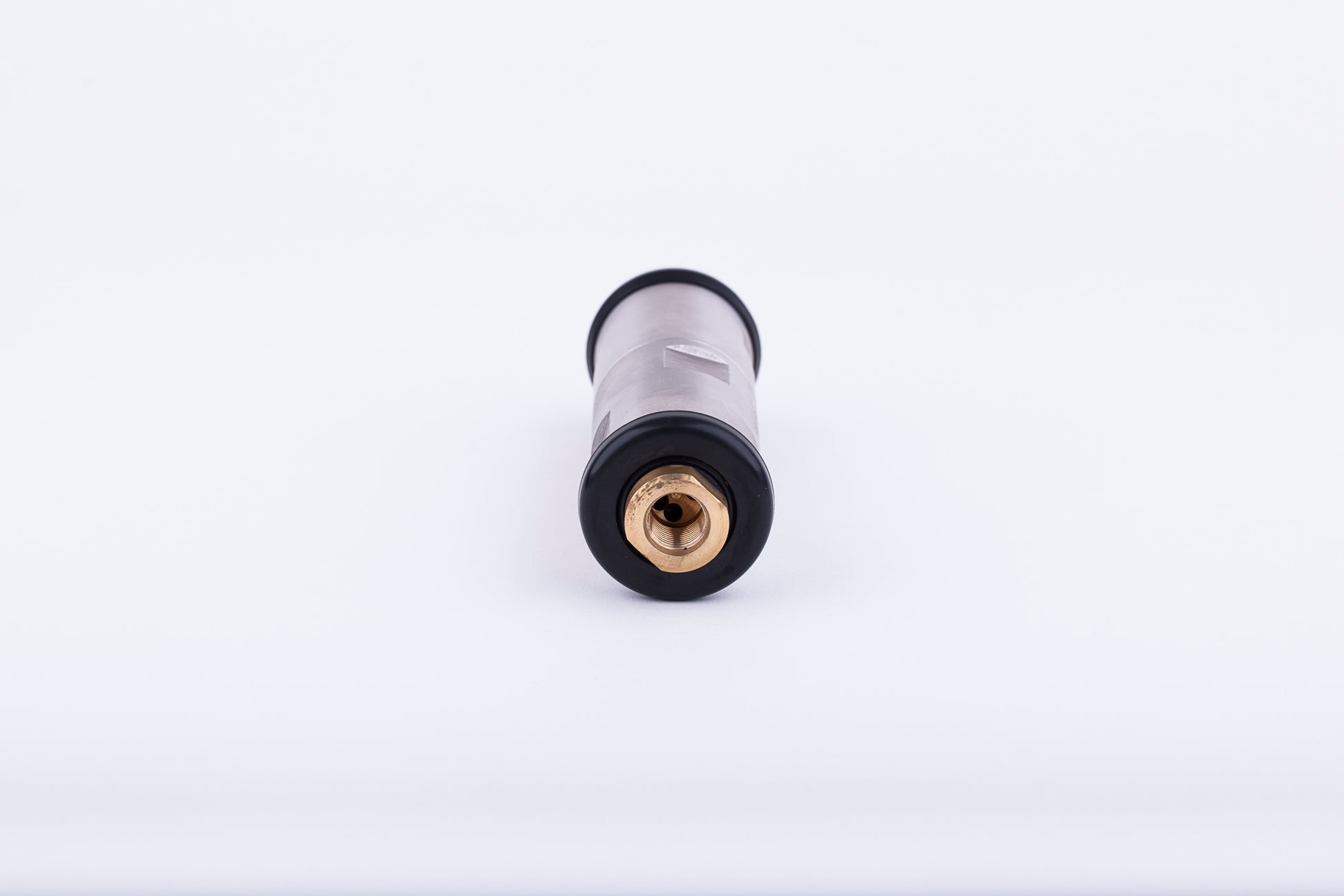

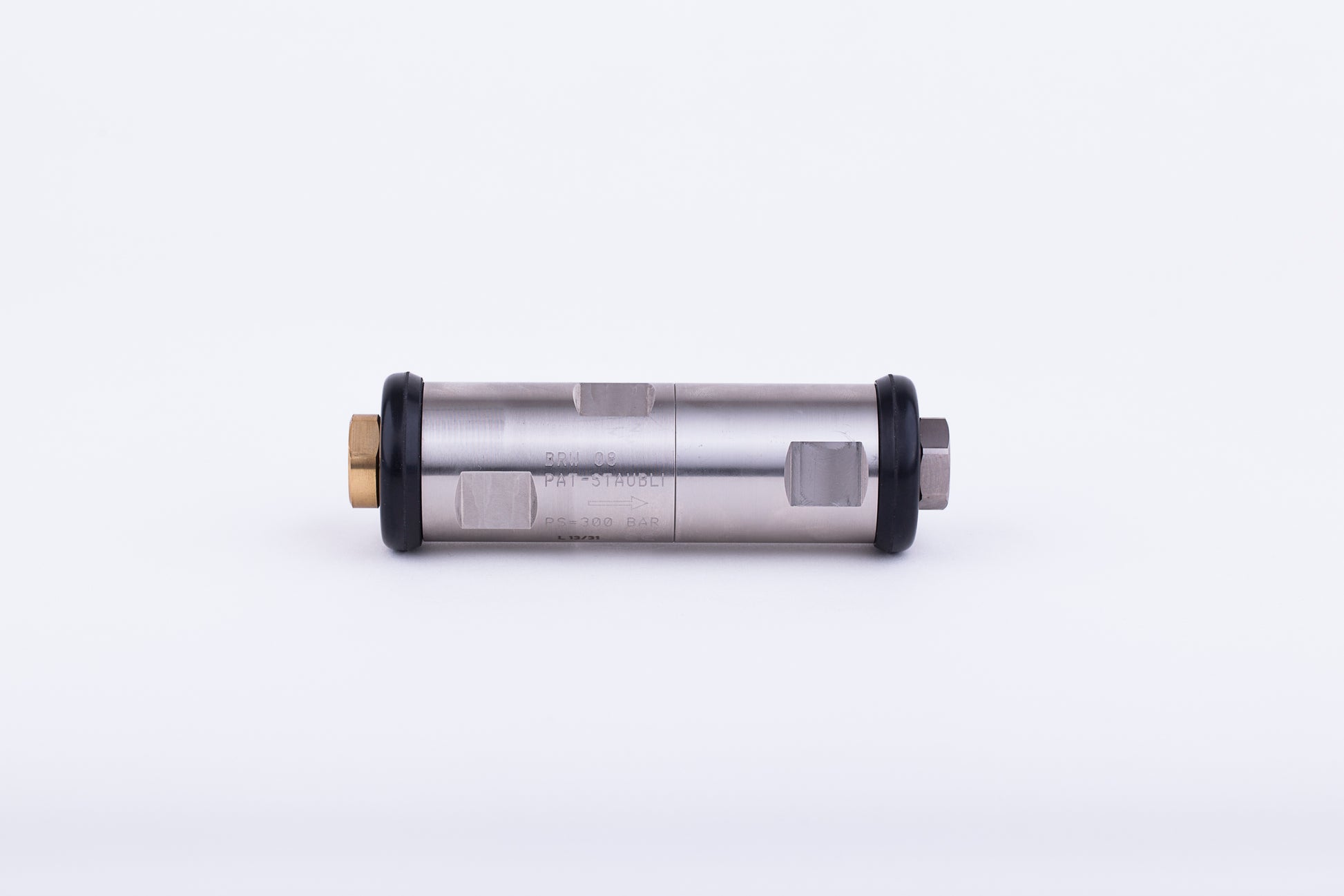

BRW.08 CNG Breakaway Coupling – Safety Disconnect

Name: BRW.08 CNG Breakaway Coupling – Safety Disconnect
Brand: Stäubli
Availability: InStock

The BRW.08 CNG breakaway coupling is a critical safety component designed to protect compressed natural gas (CNG) and biomethane fueling stations from damage caused by accidental drive-away incidents.

Installed between the dispenser hose and the fueling nozzle, the breakaway coupling automatically separates when excessive tension is applied to the hose. This prevents damage to fueling equipment while helping minimize gas release and ensuring safe shutdown of the fueling system.

The BRW.08 features a compact and durable stainless-steel construction designed for demanding refueling environments. Its reconnectable design allows the coupling to be easily reset after a breakaway event, reducing downtime and maintenance costs for station operators.

Breakaway couplings like the BRW.08 are widely used in modern CNG and biomethane fueling infrastructure to improve safety and protect fueling equipment during vehicle refueling operations.

Technical Specifications

Key Features and Benefits

Protects fueling stations from drive-away incidents
Automatic safety disconnect under excessive tension
Reconnectable design reduces maintenance costs
Durable stainless-steel construction
Compact inline installation
Minimizes equipment damage during accidents
Designed for high-pressure fueling systems

Flow Rate & Nominal Pressure

Designed for high-flow CNG fueling systems used at public and private fueling stations.

Nominal pressure class:
Up to 250 bar (3600 psi)

Max. Allowable Operating Pressure

312.5 bar (4532 psi)

Weight

Approx. 0.7 kg

Gas Type

Compressed Natural Gas (CNG)
Compressed Biomethane (CBG)

Connection Types / Interface

SAE-6 O-ring fittings

Inline installation between dispenser hose and fueling nozzle

Other connections can be offered upon request.

Standards & Compliance

Designed for high-pressure CNG fueling applications
Individually leak-tested during manufacturing

Compatibility & Alternatives

Compatible with most NGV1 fueling nozzles and CNG dispenser hoses used in public and private fueling stations.

Typical installation:
Dispenser → Hose → Breakaway → Nozzle

Service & Customers

Lifecycle & Service Concept

The BRW.08 breakaway coupling is designed for long service life and can be reconnected after activation. Sherex supports station operators with inspection and replacement services to ensure reliable fueling operations and minimize downtime.

Typical Customers

CNG fueling station operators
Biomethane fueling station operators
Natural gas utilities
Fleet fueling infrastructure providers
Service companies maintaining NGV fueling stations
